here is all instration step HID RISMA model for Paparon.

1. put out your plug cap

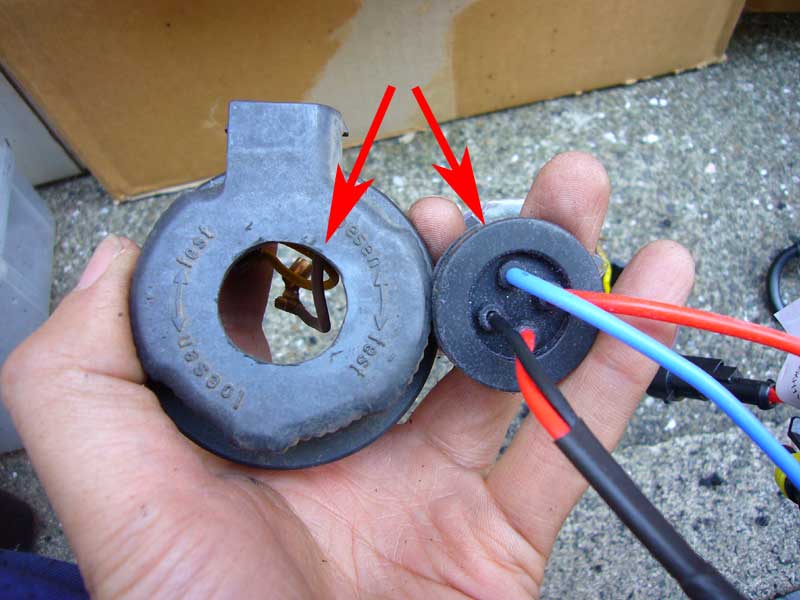

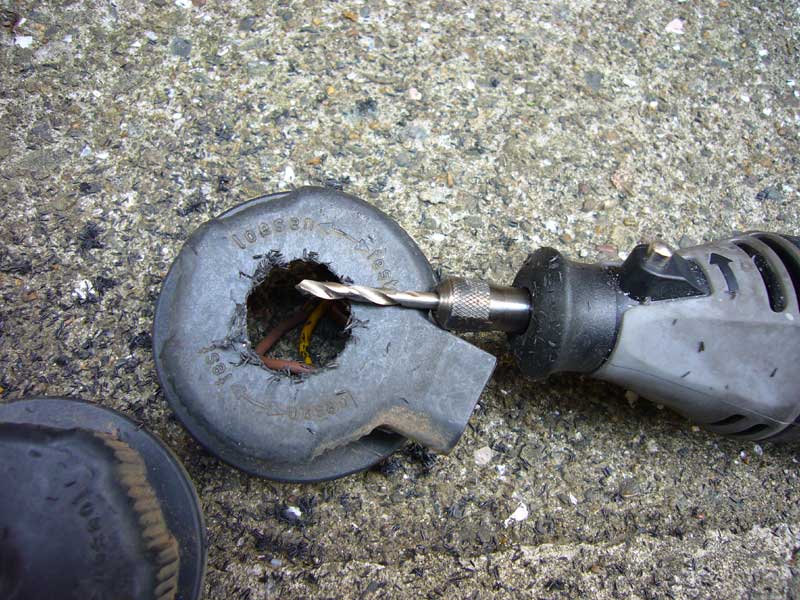

2. make the hole by drill

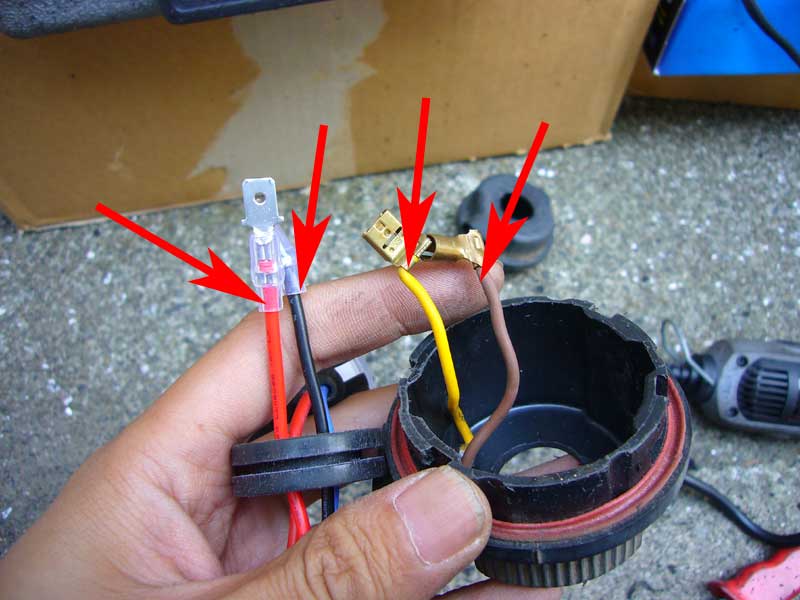

3. a little bit smaller than rubber

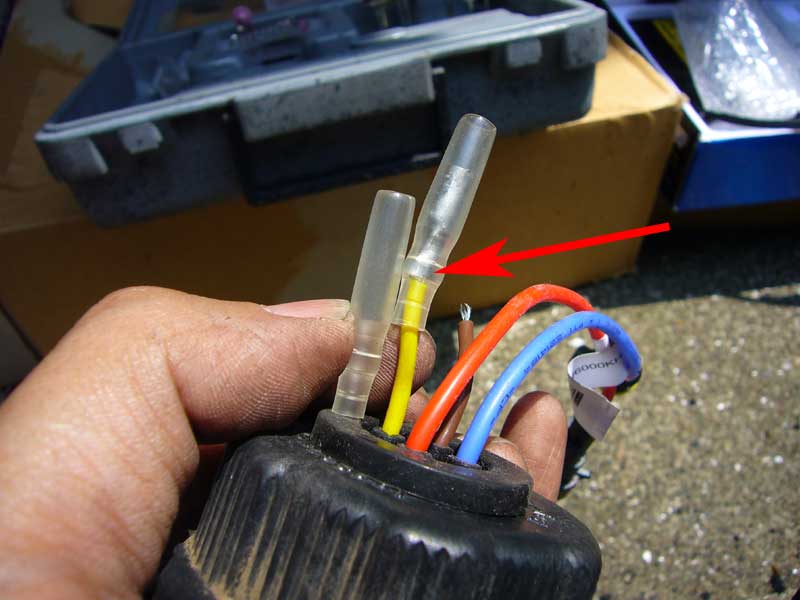

4. cut the both cable connectors

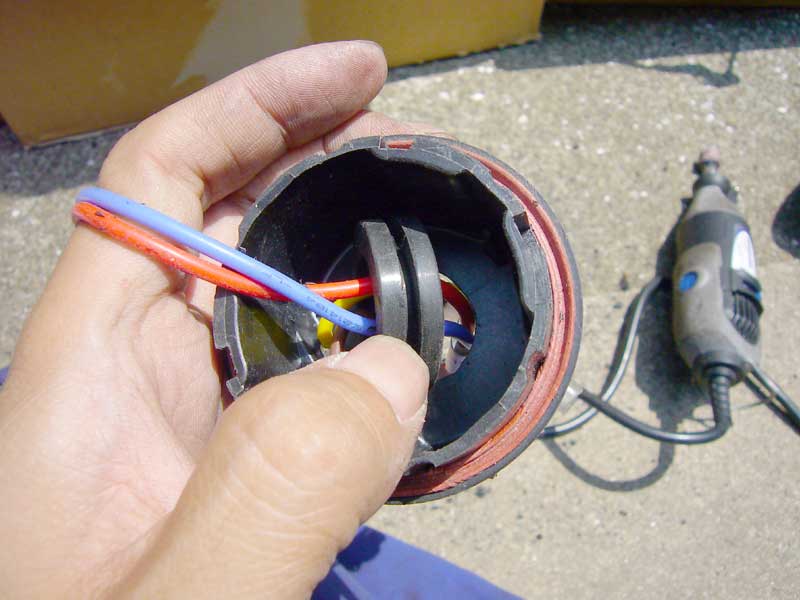

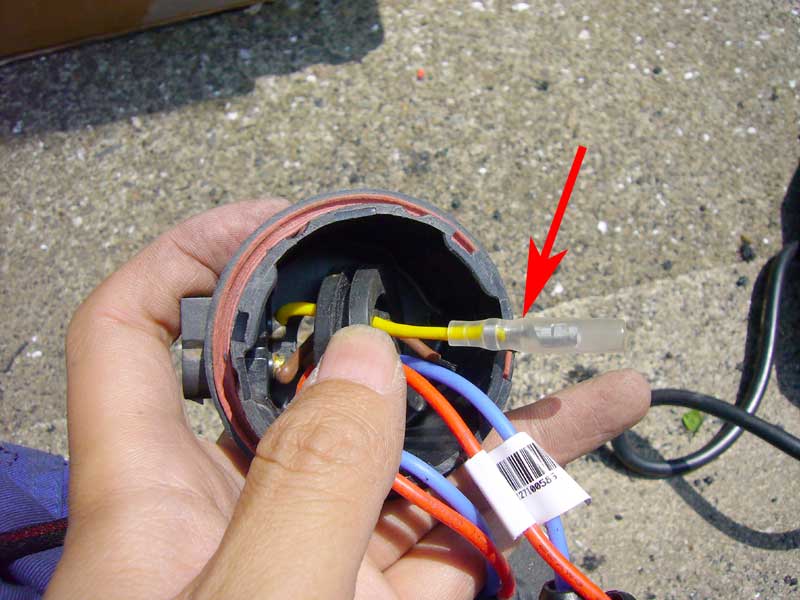

5. first plug cap cable throu into the rubber inside of cap, and make a erectric safety protect connector

6. turn the rubber cap and plug in

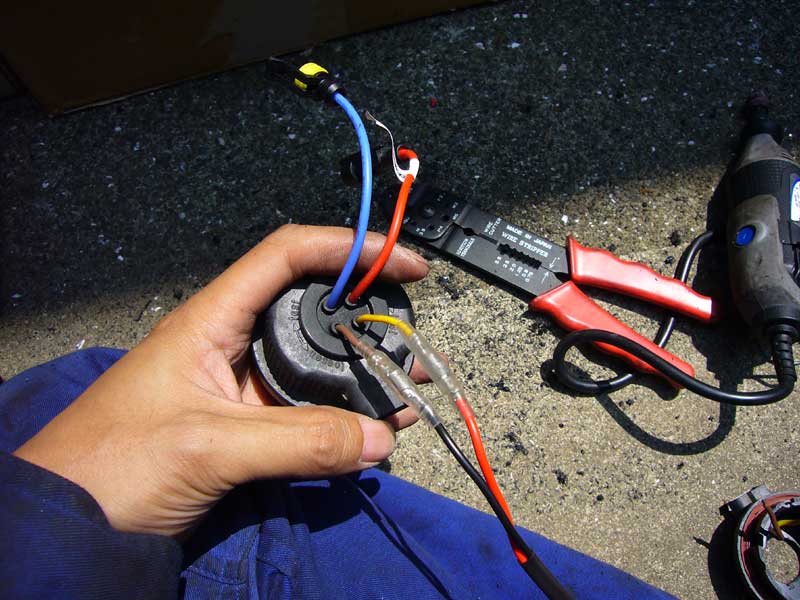

7. complete the cabel work inside look

8. if you make a safety connector outside of cap, they are no longer cable for protecter

9. connect the bulb cable

10. wash the cover lens

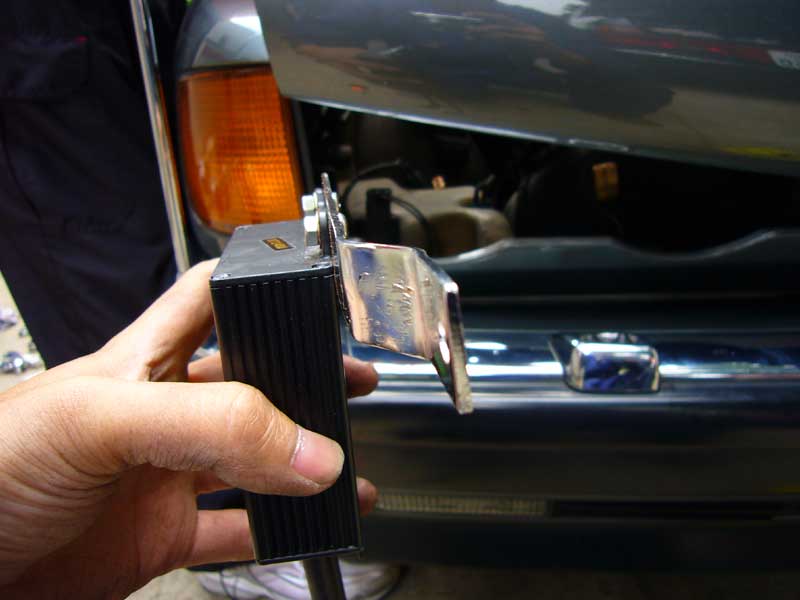

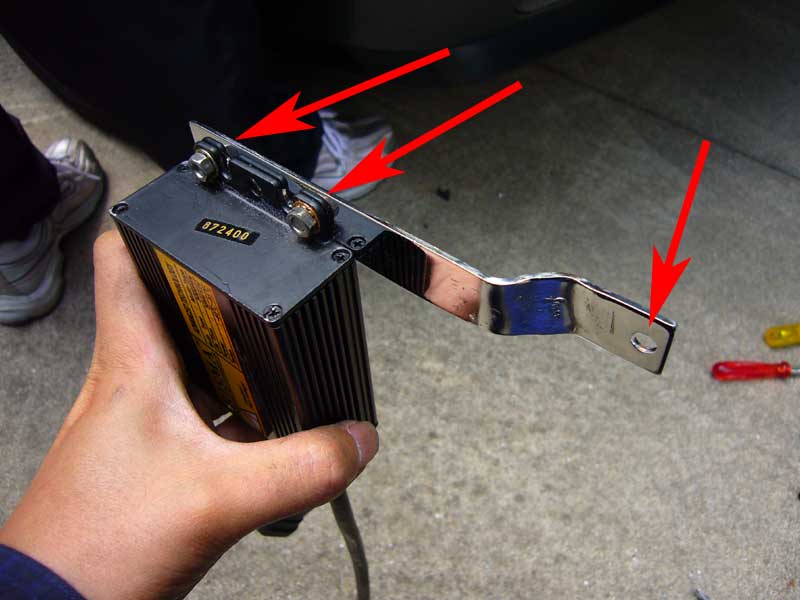

11-13. make the clump for right side unit

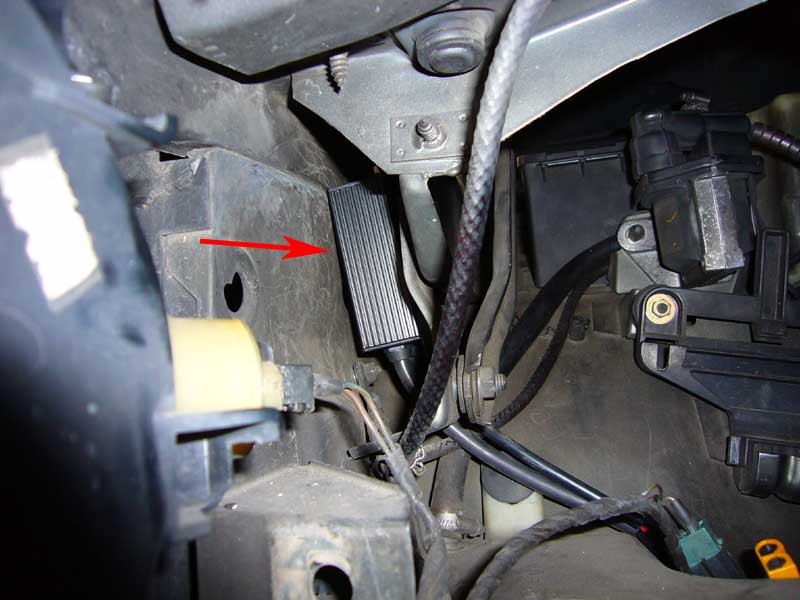

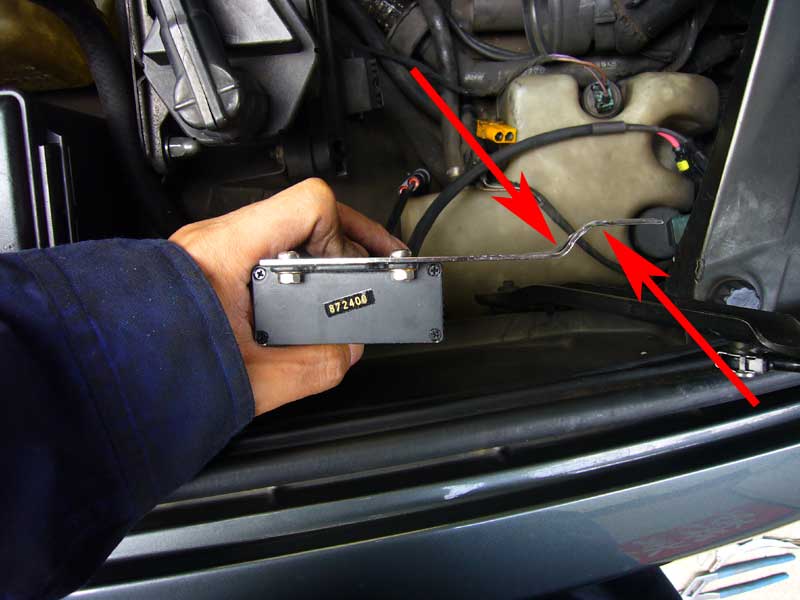

14. right side unit slide into the wall

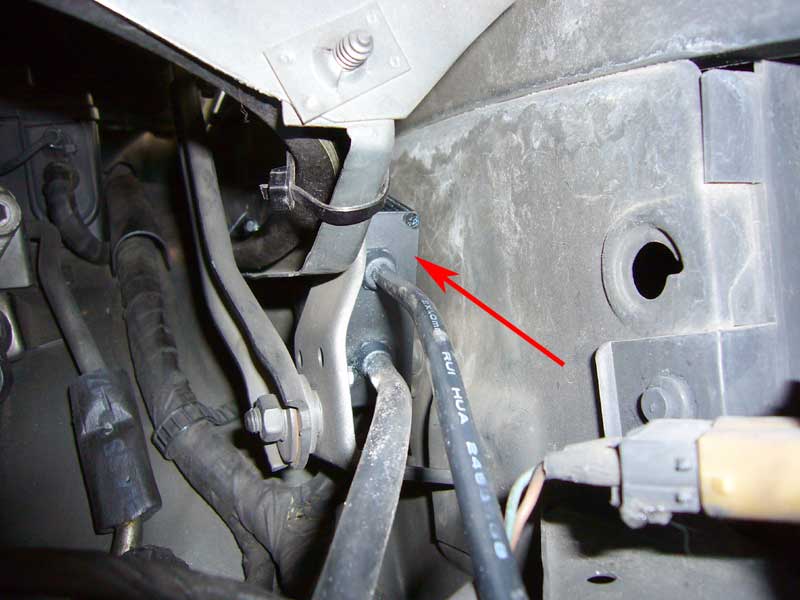

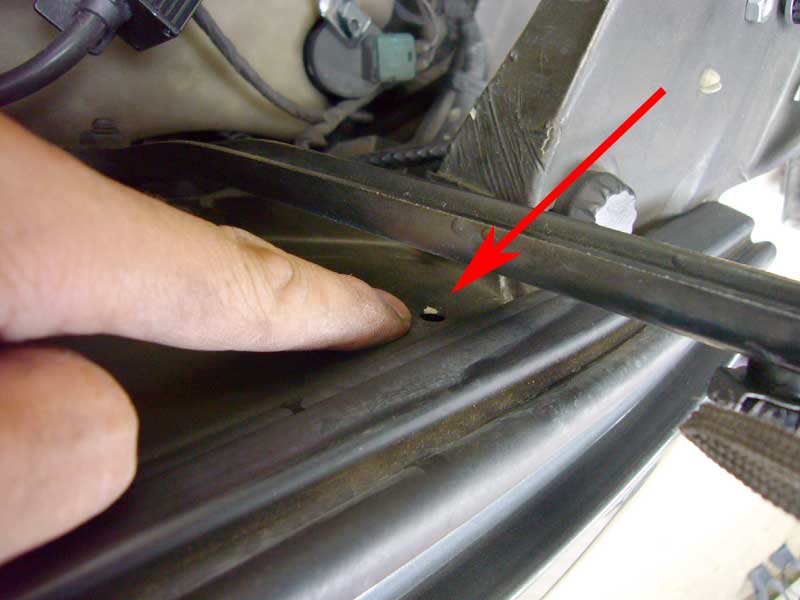

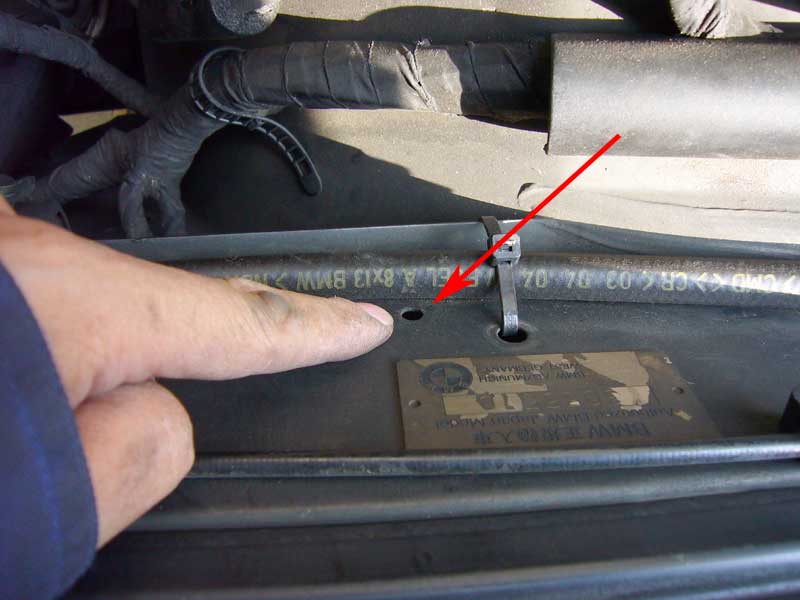

15. tightening screw holding unit

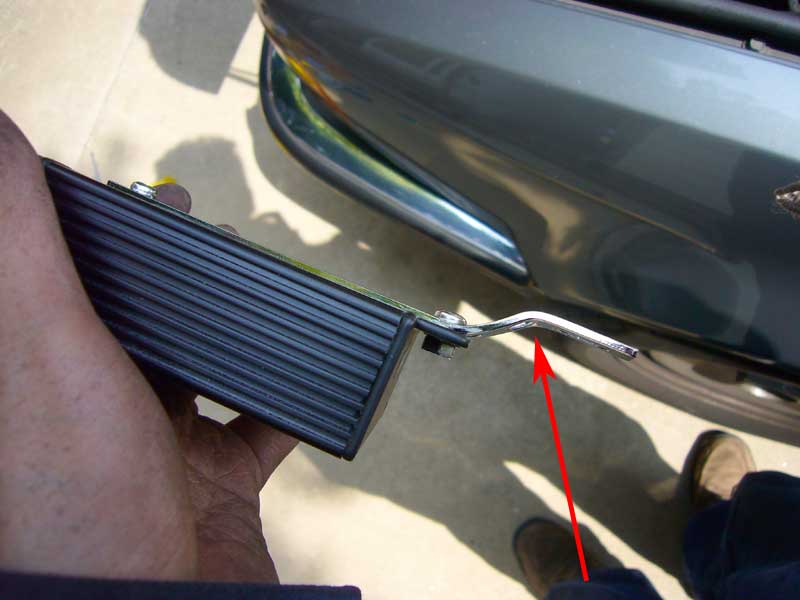

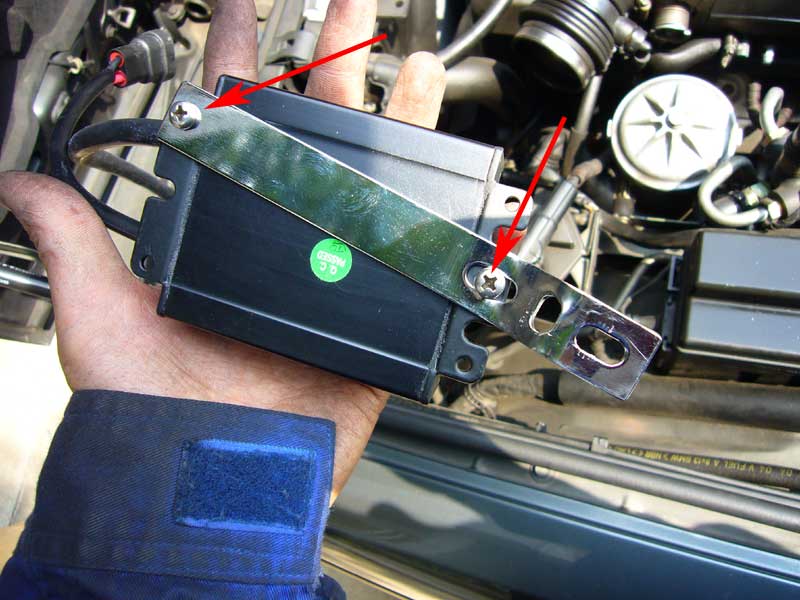

16-17. make the clump for left side unit


18. left side unit slide into the wall

19. tightening screw holding unit

20. finaly connecting all cable
